Measuring from the inside floor of the cabinet, mark a height of 8¼ inches near the front and back of each sidewall. Using the marks and a straightedge, draw a level line across the wall on each inside wall of the cabinet. Make a mark on each line that’s 7/8 inch from the front edge of the cabinet. This allows room for the thickness of the drawer front plus a 1/8-inch inset.

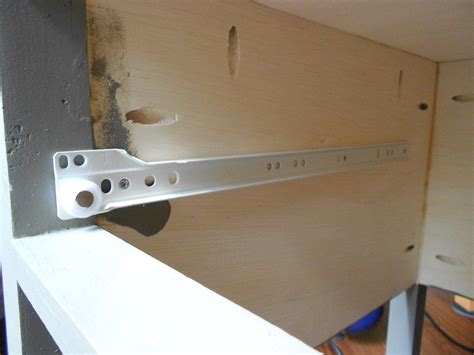

Align the bottom edge of the first slide above the line, as shown. Position the front edge of the slide behind the mark near the face of the cabinet.
Holding the slide firmly in place, push the extension forward until both sets of screw holes are visible. Using a drill/driver, drill shallow pilot holes in one screw hole near the front and back of the slide. Using the screws provided, mount the slide to the inside of the cabinet. Repeat steps 2 and 3 to mount the second drawer slide on the opposite side of the cabinet.
How To Install Drawer Slides: A Complete Guide For All Kinds Of Slides
Using a tape measure, mark the centre of the height of the drawer box on its outer sidewalls. (Note: this drawer is shown without the drawer face, which will be installed at the end of this tutorial.) Using a straightedge, mark a horizontal line along the outside of the drawer box on each side.
Remove the detachable section of each drawer slide, and place it on the corresponding drawer side. Position the slides so that they are centred on their corresponding line and flush with the face of the drawer box, as shown.
Hold the drawer level in front of the cabinet. Place the ends of the slides attached to the drawers into the tracks inside the cabinet. Pressing evenly on each side of the drawer, slide the drawer into place. The first slide inward can sometimes push a bit tougher, but once the tracks are engaged, the drawer should slide back out and in smoothly.
How To Replace Kitchen Cabinet Drawer Slides
Apply wood glue to the face of the drawer box. With the drawer closed, position the drawer face with equal gaps along the top and side edges. Using clamps, secure the drawer face against the drawer box.
Carefully slide the drawer open, and then drive 1-inch screws through the holes in the drawer box and into the backside of the drawer face to secure it in place.Is replacing that pesky, broken kitchen cabinet drawer on your weekend to-do list? No need to call in a handyman. Anyone can replace kitchen drawers easily and affordably with a little DIY know-how. Set yourself up for success with these simple steps.
Whether you are replacing a broken cabinet drawer or preparing to buy a new one, here is how to measure for a perfect fit.To replace kitchen drawer boxes:Measure the height, width, and depth of the existing box. Measure the outside dimensions. You do not need to measure the drawer front.To measure the cabinet opening (using side-mounted glides):
How To Install Soft Close Drawer Slides: An Easy Guide
Bottom Drawer ReplacementA quick fix for holes on the drawer’s bottom panel is to replace it with plywood. Buy or cut a piece the exact measurements of the damaged one. Then press the new bottom panel into the grooves of the drawer. If it fits, secure it with a line of wood glue all the way around the panel. Use clamps if needed to ensure a secure fit as the glue dries.For drawer bottoms without slots or grooves, staple the new panel into place. Then replace kitchen drawers. You know you are all set when it slides easily into the frame.Choosing the Wood and Hardware
Solid hardwood has been the top choice for cabinet drawer fronts and sides. Well-constructed wood joints are assembled using techniques that should not loosen over time. A technique called Dovetail Joinery is widely considered the strongest way to construct a drawer. It’s worth researching if you have the budget for it!But, if solid hardwood is outside your budget, engineered woods are a popular alternative. Veneered plywood, particleboard, and medium-density fiberboard (MDF) are available at most lumber yards. Plywood is recommended for the bottom section of the drawer because it will not swell or shrink.Choosing slides for kitchen cabinet drawers requires a choice between style and simplicity. Since undermount slides are not visible when the drawer is open, they need less side clearance and a wider cabinet. Bottom-mount slides align the drawer box so it is easier to install, but visible on the side edges. Either way, look for heavy-duty materials that contain ball bearings or smooth-gliding rollers.As for accessory hardware, it is considerably more comfortable to open a heavy drawer with a horizontal pull. Feel free to get creative with finish and shape! Let your kitchen design guide you: Are the cabinets curved or square? Are lighting fixtures chrome or brushed nickel? When shopping, choose hardware that creates a cohesive look.Buying Drawer Slides to Match
If you like the style of slides already installed inside the cabinet – you need only buy the matching set at your local home center or lumberyard. Generic, epoxy-coated slides are perfectly fine if they match the depth of your drawer box. Follow the product directions to attach the new or replacement slides correctly.Switching up the style of your slides is easy. Uninstall the original or broken slides and follow product directions to give the drawers the look you want. Custom drawer slides like our Glide-Out design are a simple way to personalize any kitchen. Just refer to the measuring guide above before you go to the store or order online.Dividers
How To Install Epoxy Coated Roller Drawer Slides
Don’t waste time in your kitchen looking for everything you need. Nobody wants to burn dinner because they can’t find a spatula. Cabinet dividers are available at any home goods store, and they come in many different styles. But why settle for one-size-fits-all cabinetry when you can customize cabinets to your every need?Custom inserts organize silverware, cooking utensils, and oversized tools, and drawer-in-a-drawer solutions maximize cabinet space. Keep what you need within reach and save the rest of the drawer for storage.Installing the New Drawer Box
Once the sliders are on, test the new drawer box to see if it rolls without trouble. Then follow these steps to complete your installation.
We Can HelpOne reason homeowners replace kitchen drawers is to maximize their storage space. Want to update your kitchen storage without the hassle of renovating? Schedule a free, no obligation at-home consultation today! Book online or call (866) 460-9894. We hope to talk to you soon.
How To Install Ball Bearing Drawer Slides
Ready to get started? Select your preferred booking method below, and one of our talented designers will come to your home and create your custom storage solution.Replacing drawer slides is one of those annoying “must do’s” that spring up from time to time when the old drawer hardware wears out. The result is a drawer that sticks—or collapses—inside or out of the cabinet, spilling its contents all over the place.
Some may feel difficult or confused in replacing old drawer slides. So here we’ll teach you 5 easy steps to make it!
Pull the drawer carefully out as far as it will go. Lift the front of the box up at a 45 degree angle. If this is not successful at freeing the drawer, pull up on the back of the drawer.
How To Install Drawer Slides In Your Cabinets Like A Pro
If you still encounter difficulties freeing the drawer, look for drawer locks or swing latches that prohibit the drawer from coming all the way out of the box.
Often you can bypass these latches by pushing the drawer in slightly, then moving the latches to the side to release the slides.
Watch for rollers or wheels on the back of the drawer. You may need to use either a Phillip’s head or slotted screwdriver for this task, and on some drawers, you will need to simply pry staples out of the drawer.
The Complete Guide To Choosing Drawer Slides
Take a flexible tape measure and measure the length of the drawer slides. Make a sketch noting the length as well as the width of each slide.
As you note each slide length, also measure and make note of the drawer box length to see if it will accommodate a longer slide.
We suggest that you can try’s drawer slides, because many old drawer slides are outdated, have short service life, are easy to rust, and slide stiffly.
How To Choose The Right Drawer Slide
Measure the depth of the drawer ( for example, if the depth is 13in/330mm, choose 12in/300mm drawer slides. Deviations of 0.7in/20mm-1in/30mm are suitable)
As for ’s drawer slides, you should also make sure that your cabinet has reserved 13mm of space between drawer and cabinet.
Begin by laying the glides out over the drawer box and in the drawer, making sure that you have lined up right sides with right sides and left with left. Check the markings for front and back to save yourself redoing a task later.
How To Install Drawer Slides In 11 Steps
Attach the slides to the drawer box inside the cabinet first. Align the slides and use the measurements from the previous slides to be sure they are level. Screw the glides in.
Replacing your drawer glides can be necessary, and is much cheaper than replacing the whole piece of furniture. You can use the saved money to purchase
